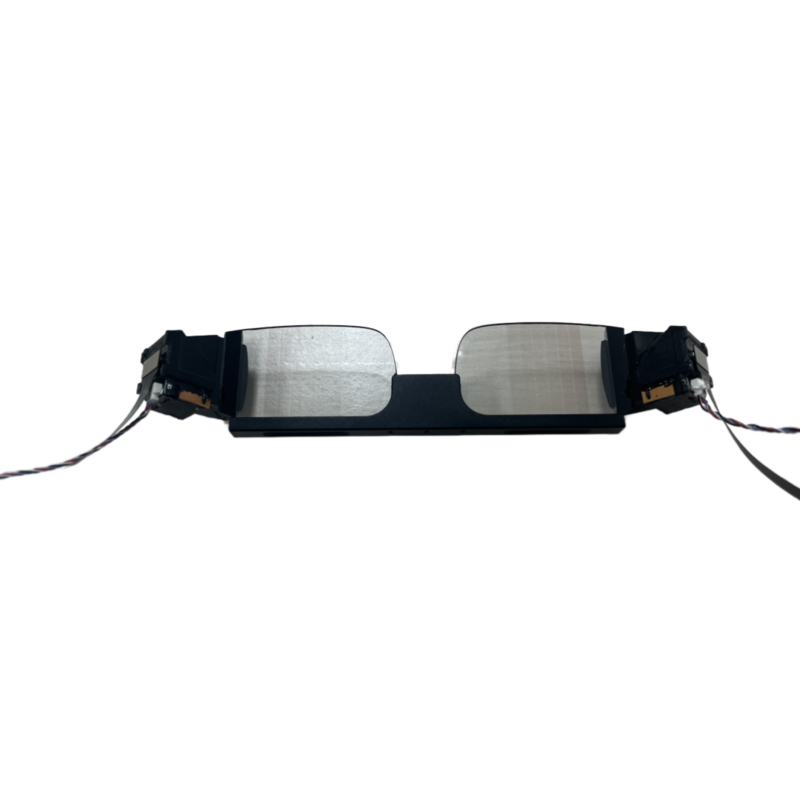

LCOS 120HZ 40° FOV 1920 * 1080 Waveguide Micro Display Module With LVDS
Product Introduction
This display module is a side-illuminated optical waveguide module produced using the industry's unique molecular bonding process.
Its excellent display effect and lightweight appearance can be perfectly adapted to various AR smart output terminals.
Compared with similar products on the market, this product not only has smaller and lighter modules, but also has better and excellent display effects under the same power consumption and display chip conditions.
Product Details
| Display Technology |
Waveguide |
| Display Size |
0.37"
|
|
Display Type
|
LCOS |
|
Display Brightness
|
＞800 nits
|
| Resolution |
1920X1080 |
| Waveguide Thickness |
＜1.5mm |
| FOV |
40° |
|
Eyebox
|
9 × 6 mm
|
|
Eye Relief
|
18mm |
| Transmittance Rate |
＞85% |
| Frame Rate |
120Hz |
Product Features
- Small size display with full high definition: 0.37 inch 1920*1080 LCOS micro display.
- High contrast: 200:1
- High transmittance Rate: >85%
- Wide range of color reproduction.
- Using optical waveguide technology.
- This LCOS micro display module has monocular and binocular.
Applications
Mainly used to enhance the reality of virtual near-eye display, is a penetrating auxiliary information display equipment, military helmet display, military display kit, portable night vision device, medical equipment framing, infrared thermal imager framing, laser sight imaging, soldier night vision system, game helmet, intelligent robot framing, computing imaging, distance education, FPV goggles, AV/VR smart glasses, head mounted display, video glasses, head up display etc.
Tag: Waveguide , LCOS screen , LED lighting module , Micro Display Module.
